Hydraulic Assembly and Disassembly Frame
The Hydraulic Assembly and Disassembly is tailored to China’s current industrial conditions and requirements, ensuring proper make-up and break-out of API-standard casing, couplings, drill-pipe connections, drill pipe, heavyweight drill pipe, drill collars, and similar components. This specialized assembly/disassembly equipment is used for the removal, installation, and maintenance of various petroleum and geological screw-drilling tools, tubing strings, non-magnetic instruments, and other downhole tools.
Equipment Overview

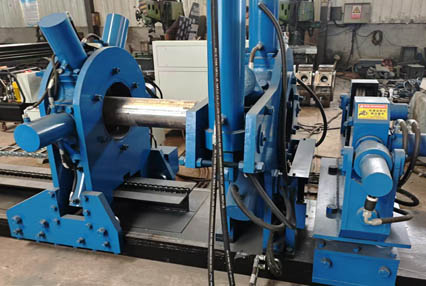

The Hydraulic Assembly and Disassembly Frame combines cutting-edge domestic and international technologies, customized to fit China’s industrial landscape. It guarantees the accurate make-up and break-out of API-standard components. This specialized rig serves as the go-to solution for the removal, installation, and maintenance of a wide range of petroleum and geological downhole tools.
Equipment Components
The Hydraulic Assembly and Disassembly Frame consists of the following main units:
- Hydraulic Control Console
- Supplies the hydraulic power source, indicator gauges, and control levers.
- Hydraulic Clamps
- Comprises fixed and movable clamp assemblies to securely grip workpieces and apply torque.
- Hydraulic Make/Break Unit
- Applies the necessary make-up torque to tighten threaded connections and provides sufficient reverse torque (maximum rotation > 30° per cycle) to loosen them.
- Rapid Make/Break Mechanism
- Enables quick pre-tightening during make-up and fast release during break-out of threaded components.
- Hydraulic Auxiliary Support Assembly
- Features three movable, bidirectional supports mounted on the base at each end of the main frame, working with the main unit to stabilize workpieces during assembly/disassembly.
- Equipment Base
- Made up of a central main base and two extended auxiliary bases for enhanced stability.
- Tail-End Push-Pull Unit
- Performs the axial insertion or extraction of the workpiece.
Technical Parameters
| Parameter | Metric System | Imperial System |
| Motor power | 22KW | – |
| Diameter range of clamping workpiece | 60–130mm | 2 3/8”–12 1/8” |
| Maximum release torque | 185KN.m | 1320000ft-lbs |
| Maximum up-button torque | 155KN.m | 110000ft-lbs |
| Maximum torque for fast buckle | 5KN.m | – |
| Maximum thrust | 245KN | – |
| Maximum pulling force | 195KN | – |
| System working pressure | 16Mpa | – |
| Weight | 12.6t | – |
Note: The diameter size can be customized according to user requirements.
Hydraulic Assembly and Disassembly Frame最先出现在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>Product Description:
Our company produces gears and gear reducers utilizing Lufkin herringbone gear technology. The gear processing is carried out with specialized equipment, featuring a left and right helix angle of 30o. The diameter is controlled using specialized tools and an expansion method. Thanks to the unique characteristics of gear planing, our herringbone gears offer balanced forces, no axial force, and enhanced load-bearing capacity, resulting in a longer lifespan.
The reducer casing and cover undergo annealing before processing, which reduces casting stress by 90%. This ensures that the joint surfaces can be disassembled without deformation.
Product Line:
- LUFKIN Series:
- 80D, 114D, 160D, 228D, 320D, 456D, 640D, 912D, 1280D pumping unit reducer and gear.
- AMERICAN Series:
- D114G, D160G, D228, 320F, 456F, D640F, D912G pumping unit reducer and gear.
Herringbone Gear Reducer Features:
- Strict Quality Control:
Reducer products are strictly controlled according to?API 11E standards. - Horizontal Split Cover Design:
Gear housing with a horizontal split cover design, making it?easy to maintain on-site. - Precision Machined Gears:
Herringbone gears are precisely machined, ensuring?uniform force distribution, strong bearing capacity, and a longer lifespan. - High-Quality Shafts:
All shafts are made of?alloy steel, heat-treated, and precision machined to tight tolerances. - Durable Brass Sleeve:
The low-speed shaft features a?large brass sleeve?with high accuracy and long life (LUFKIN). - Integrated Lubrication System:
Equipped with an?integrated forced lubrication system, ensuring stable and reliable operation. - Optimized Oil Scraping Components:
Oil scraping components are installed from the upper part of the driving wheel, providing?better structural force and lubrication efficiency. - Interchangeable Parts:
All parts are fully interchangeable with?LUFKIN and American gearbox?components.

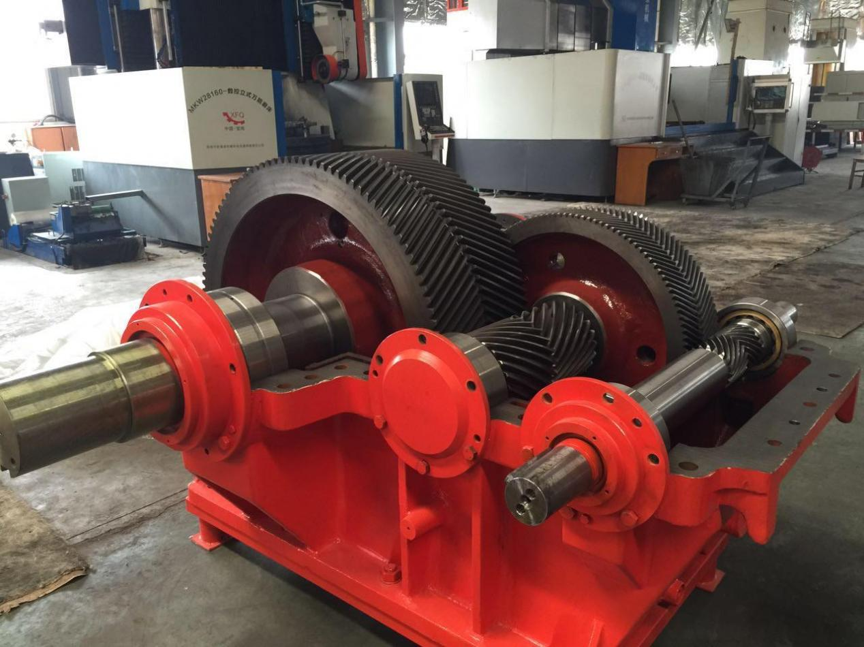

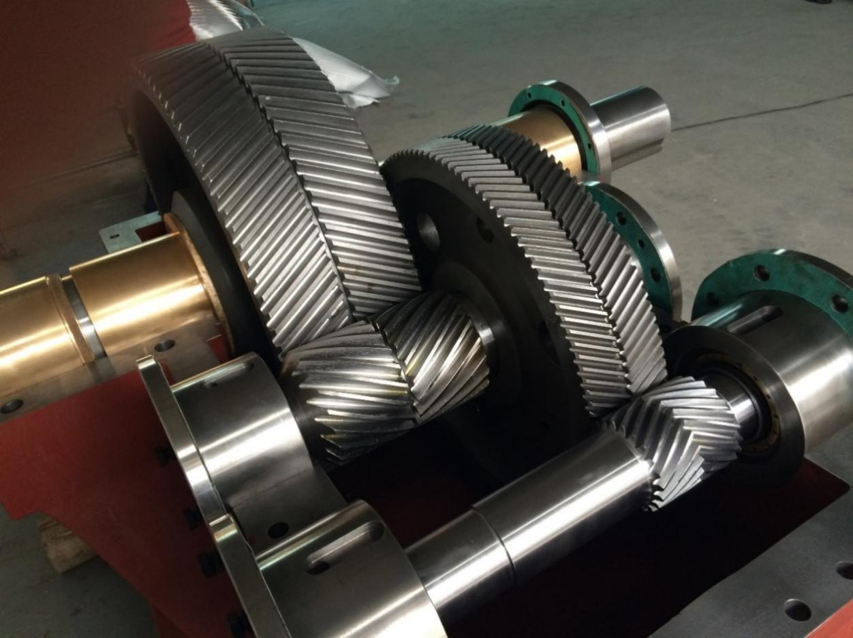

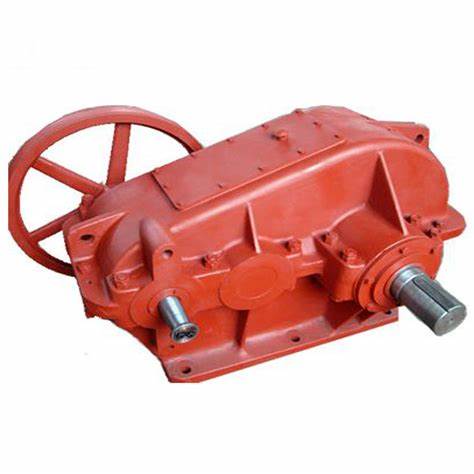

Herringbone Gear Reducer Images:
SDD Manual Tong
Overview
The?SDD Manual Tong?is an essential tool in oil drilling operations, designed for making up and breaking out drill pipes, casing joints, and couplings. It is highly versatile and can be adjusted by changing latch lug jaws and handling shoulders. All tongs we offer are certified to meet?API 7K?and?ISO?standards, ensuring reliability and safety in demanding drilling environments.
Key Features
- Adjustable Design: Customizable latch lug jaws and handling shoulders for various applications.
- Certified Quality: Compliant with?API 7K?and?ISO?standards.
- Durable Construction: Built to withstand rigorous oil drilling operations.
Product Specifications
| Model | Handle shoulder | Handle OD mm(in) | Torque | |
| in | mm | KN.m | ||
| SDD 4“-17“/140 | 1 | 4-8 1/2 | 101.6-215.9 | 140 |
| 2 | 8 1/2-12 | 215.9-304.8 | 140 | |
| 3 | 12-15 | 304.8-381 | 105 | |
| 4 | 15 3/4 | 400.1 | 140 | |
| 5 | 16-17 | 406.4-431.8 | 85 | |
Applications
- Drill Pipe Handling: Efficiently make up and break out drill pipes.
- Casing Operations: Secure casing joints and couplings with precision.
- Versatile Use: Suitable for a wide range of drilling equipment and sizes.
Why Choose Type SDD Manual Tong?
- Reliability: Engineered for high-performance drilling operations.
- Flexibility: Adjustable components for diverse drilling needs.
- Compliance: Meets international standards for safety and quality.
For more information or to place an order, please contact us.
]]>Type WWB Manual Tongs最先出现在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

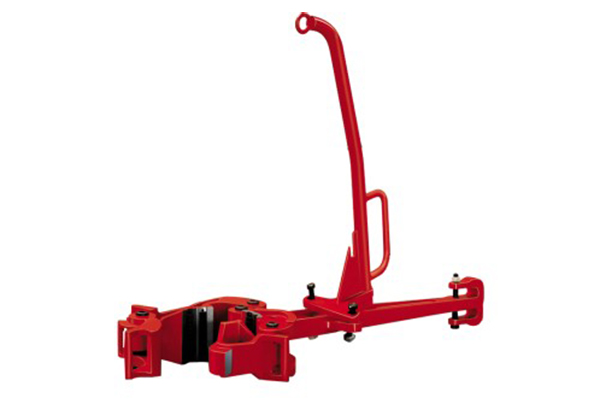

WWB Manual Tong
The WWB Manual Tong is an essential tool in oil drilling operations, designed to fasten or remove the screws of drill pipes and casing joints or couplings. Its versatility is enhanced by the ability to adjust it through changing latch lug jaws.
The WWB Elevator Tong is part of the Web Wilson series of products, sharing the same product line as the AAX type elevator tong.
Key Specifications
- Maximum Torque:?48 KN·m
Latch Lug Jaws Specifications
| No.of Latch Lug Jaws | Size Range | Rated Torque | ||
| in | mm | lb·ft | KN·m | |
| 1# | 2 3/8-3 3/4 | 60.3-95.25 | 35000 | 48 |
| 2# | 3 1/2-4 5/8 | 88.9-117.48 | ||
| 3# | 4 1/2-5 3/4 | 114.3-146.05 | ||
| 4# | 5 1/4-7 1/4 | 133.35-184.15 | ||
| 5# | 6 7/8-8 5/8 | 174.63-219.08 | ||
| 6# | 9-10 3/4 | 228.6-273.05 | 25000 | 35 |
This product is ideal for oil drilling operations, offering reliability and adaptability for various pipe sizes and torque requirements.
Type WWB Manual Tongs最先出现在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

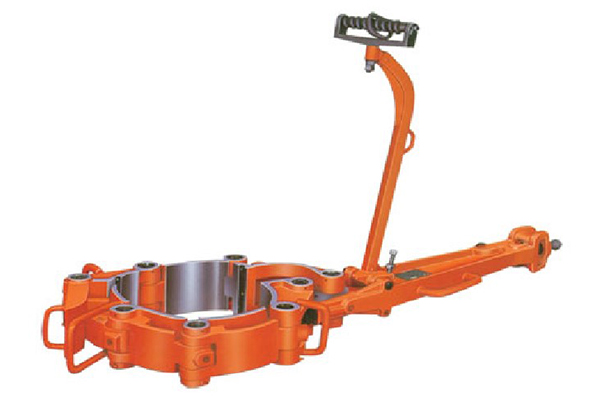

Casing Tongs
Casing lifting clamps are essential tools used to tighten or loosen casing and casing coupling threads in oil drilling operations. These products are designed and manufactured in strict accordance with API Spec 7K specifications.
The Casing Tong is a versatile tool designed for making up and breaking out connections of various pipe strings and tools during drilling and workover operations. By adjusting the closing jaws and steps, it can accommodate the requirements for different pipe diameters.
Key Features
- Applicable Pipe Diameter:?2 3/8″ – 10 3/4″ (60.33 mm – 273.05 mm)
- Maximum Torque:?48 kN·m
- Compliance:?Designed and manufactured according to?API Spec 7K?requirements.
Technical Parameters
| Tong number | Short Jaw | The pipe diameter?(mm) | The pipe diameter?(in) | Max. Torque(KN.m) |
| mm | in | KN.m | ||
| 1 | 1# | 60.33-93.17 | 2 3/8-3 5/8 | 48 |
| 2 | 1# | 73.03-108 | 2 7/8-4 1/4 | |
| 3 | 1# | 88.9-133.35 | 3 1/2-5 1/4 | |
| 4 | 1# | 133.35-177.8 | 5 1/2-7 | |
| 5 | 2# | 177.8-219.08 | 7-8 5/8 | |
| 6 | 2# | 244.5-273.05 | 9 5/8-10 3/4 |
Applications
- Oil Drilling Operations:?Tightening or loosening casing and casing coupling threads.
- Workover Operations:?Making up and breaking out connections for various pipe strings and tools.
This product is engineered to deliver high performance and reliability, ensuring seamless operations in demanding oil drilling environments.
]]>
Manual Elevator Tong
The manual elevator tong is a tool for making up and breaking out the connections of various pipe strings and tools during drilling and workover operations. By changing the closing jaws and the closing steps, it can meet the needs of making up and breaking out the connections for pipe diameters of different sizes. The product is designed and manufactured in accordance with the requirements of API Spec 7K specification.
Key Features
- Functionality: Making up and breaking out connections for pipe strings and tools.
- Adjustability: Compatible with different pipe diameters by changing closing jaws and steps.
- Compliance: Meets API Spec 7K requirements.
| No. of latch lug jaws | No. of hinge pin hole | Handle OD | Max. Torque kN·m | |
| in | mm | |||
| 1# | Ⅰ | 31/2~6 | 88.9~152 | 90 |
| Ⅱ | 53/4~7 | 146~178 | ||
| Ⅲ | 65/8~81/4 | 168~210 | ||
| 2# | Ⅰ | 8~95/8 | 203~244 | |
| Ⅱ | 105/8~111/4 | 270~286 | ||
| 3# | Ⅰ | 113/4~123/4 | 298~324 | 55 |
| Ⅱ | 133/8~143/8 | 340~365 | ||
| 4# | Ⅱ | 16~17 | 406~432 | |
Type Q3-1/2″ ~ 17″/90″ Manual Tong
The Type Q3- 1/2“ ~ 17“/90“ Manual Tong is specifically designed for making up or breaking out the screws of drill tools, casing joints, or couplings. Its adaptability is enhanced by the ability to adjust the lug jaws latch and latch steps.
Applications
- Drilling Operations: Making up and breaking out connections for drill tools.
- Workover Operations: Handling casing joints and couplings.
This product ensures high performance and reliability, making it an essential tool for demanding oilfield operations.
]]>
B Manual tongs are tools for lifting and unloading various pipe strings and tools during drilling and workover operations. By changing the tongs head and steps, the tongs can meet the needs of lifting and unloading of pipes of different sizes. The products shall be designed and manufactured according to the requirements of API Spec 7K.
| No. of latch lug jaws | Handle shoulder | Handle OD mm(in) | Max. Torque KN.m |
| 5a | 1 | 86-105(3 3/8-4 1/8) | 55 |
| 2 | 105-133(4 1/8-5 1/4) | ||
| 5b | 1 | 108-133(4 1/8-5 1/4) | 75 |
| 2 | 127-146(5-5 3/4) | ||
| 3 | 152-171(6-6 3/4) | ||
| 5b-1 | 1 | 133-146(5-6) | 75 |
| 2 | 146-168(6-7) | ||
| 3 | 168-208(7-8) | ||
| 5c | 1 | 168-187(6 5/8-7 3/8) | 75 55 |
| 2 | 187-203(7 3/8-8) | ||
| 3 | 216-219(8 1/2-8 2/8) | ||
| 5b | 1 | 216-244(8 1/2-9 5/8) | 55 |
| 2 | 270-273(10 5/8-10 3/4) | ||
| 5e | 1 | 298(11 3/4) | 55 |
| 2 | 324(12 3/4) |

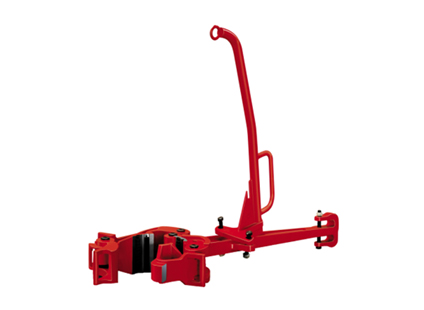

Type Q73-340/75(2 7/8-13 3/8in) AAX Manual Tong is an essential tool in oil drilling operation to fasten or remove he screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws.
| No.of Latch Lug Jaws | Size Range | Rated Torque | ||
| in | mm | lb·ft | KN·m | |
| 1# | 2 7/8-3 3/4 | 73-95.25 | 40000 | 55 |
| 2# | 3 1/2-4 1/2 | 88.9-114.3 | ||
| 3# | 4 1/4-5 1/4 | 107.95-133.35 | 55000 | 75 |
| 4# | 5-7 | 127-177.8 | ||
| 5# | 6 7/8-8 5/8 | 174.6-219.1 | ||
| 6# | 9-10 3/4 | 228.6-273.05 | 30000 | 40 |
| 7# | 10 3/4-11 3/4 | 273.05-298.45 | ||
| 8# | 13 3/8 | 339.7 | ||

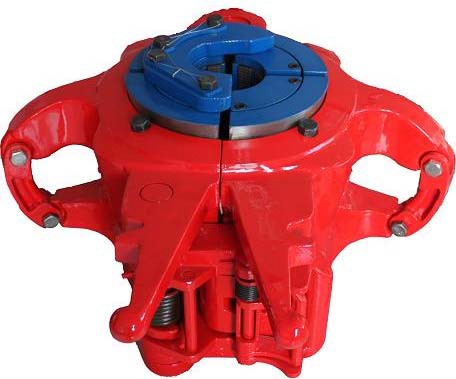

Y Series Slip Type Elevator最先出现在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>
The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column.
| Model | Size | Rated Cap. | |
| mm(in) | kN | Short Tons | |
| HYT | 60.3-88.9 (23/8-31/2) | 1350 | 150 |
| YT | 33.4-88.9 (1.315-31/2) | 675 | 75 |
| MYT | 33.4-73 (1.315-27/8) | 360 | 40 |
| LYT | 26.7-52.4 (1.05-11/16) | 180 | 20 |
| HYC | 88.9-139.7 (31/2-75/8) | 1800 | 200 |
| MYC | 88.9-117.8 (31/2-7) | 1125 | 125 |
| YC | 88.9-117.8 (31/2-7) | 675 | 75 |
Y Series Slip Type Elevator最先出现在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

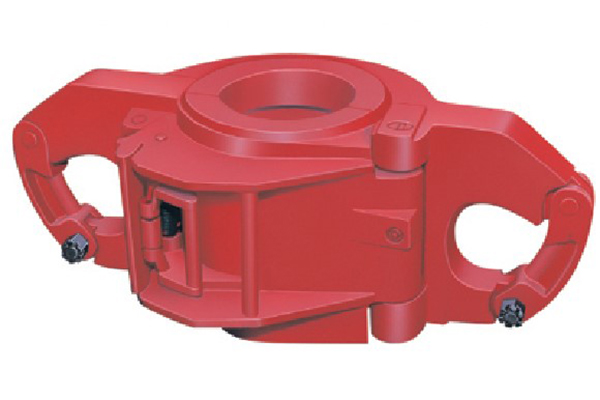

Model SLX side door elevator with square shoulder are suitable for handling tubing, casing, drill pipe and drill collar in oil and natural gas drilling, well construction. The products are designed and manufactured according to the requirement in API Spec
| Model | Size(in) | Rate Cap. (Short Tons) |
| SLX-65 | 3 1/4-14 3/8 | 65 |
| SLX-100 | 2 3/8-5 3/4 | 100 |
| SLX-150 | 5 1/2-13 5/8 | 150 |
| SLX-250 | 5 1/2-30 | 250 |
| SLX-350 | 4 1/2-14 | 350 |
