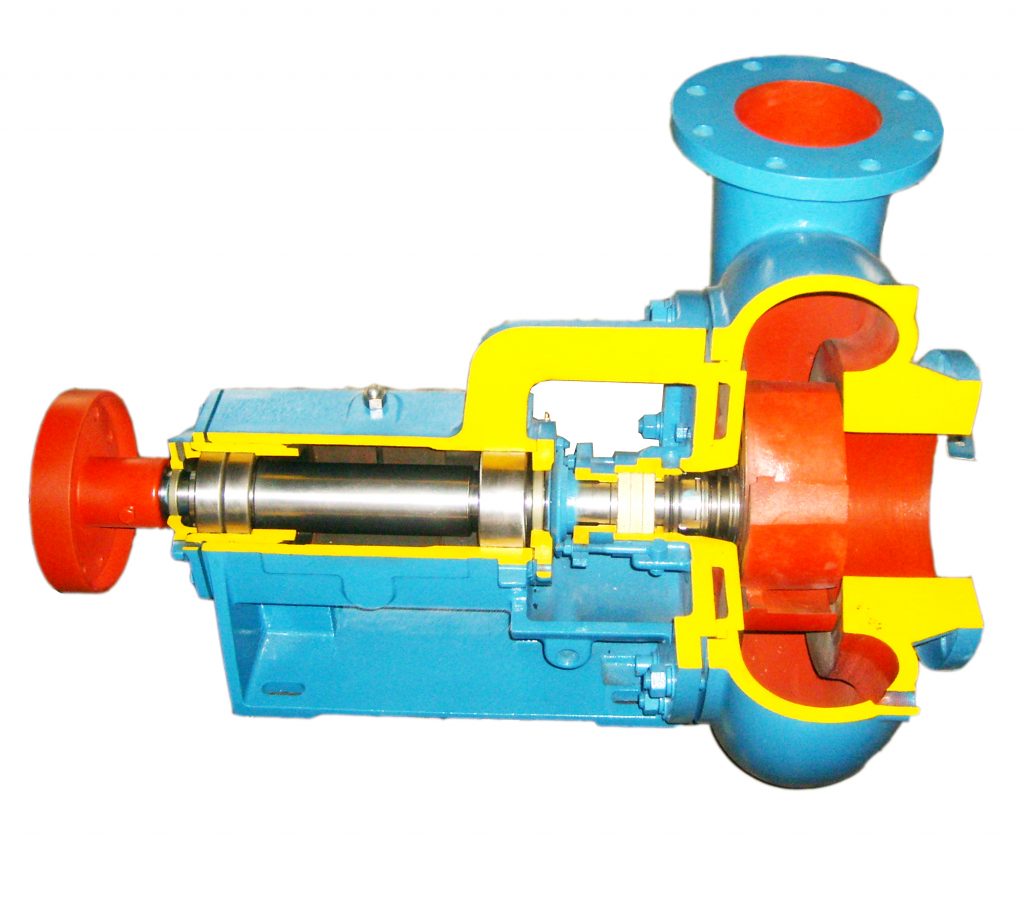

I. LA 2500 CENTRIFUGAL PUMP SUMMARY

LA2500 CENTRIFUGAL PUMP is designed and engineered to handle abrasive, viscous and corrosive fluids in drilling fluid or industrial slurry applications. The pump performance is matched by exceptional performance, high volume, high temperature capabilities, long service life, ease to maintenance, overall economy and greater savings.

Replaceable MISSION 2500 CENTRIFUGAL PUMP

II. WORKING CONDITIONS

Outlet：DN=2″～6″
Flow：Q=20～400m3/h
Head：H=12～62m
Working temperature：T=-40℃～60℃

III. LA2500 CENTRIFUGAL PUMP?PERFORMANCE

MODULE	Capacity (m3/h)	Head (m)	Efficiency (%)	[NPSH]r (m)	Power
MODULE	Capacity (m3/h)	Head (m)	Efficiency (%)	[NPSH]r (m)	Shaft (KW)	Motor (KW)
LA2500－10×8-14	464 580 696	34.5 30 27	58 60 63	4.0	75.2 79 81.3	110
LA2500－10×8-13	420 525 630	24 21 18	58 60 63	4.5	47.4 50.1 49.1	90
LA2500－10×8-12	376 470 564	19 16 14	51 53 55	4.5	38.2 38.7 39.2	55
LA2500－8×6-14	256 320 416	43 40 35	64 65 64	4.0	46.8 53.63 61.9	75
LA2500－8×6-13	232 290 377	35 33 28	60 64 65	4.5	36.8 40.7 44.2	55
LA2500－8×6-12	216 270 351	30 28 26	61 64 67	4.5	28.9 32 37.1	45
LA2500－8×6-14I	160 200 260	43 40 33	61 62 51	3.2	30.7 35.1 38.3	55
LA2500－8×6-13I	144 180 230	37 34 29	57 60 55	3.0	25.4 27.8 33.6	45
LA2500－8×6-12I	128 160 208	32 30 25	57 60 57	3.0	19.6 22 24.8	30
LA2500－6×5-14	160 200 260	43 40 33	61 62 51	3.2	30.7 35.1 38.3	55
LA2500－6×5-13	144 180 234	37 34 29	57 60 55	3.0	25.4 27.8 33.6	45
LA2500－6×5-12	128 160 208	32 30 25	57 60 57	3.0	19.6 22 24.8	30
LA2500－6×5-11	160 200 260	23 21 20	59 62 62	2.5	17 18.5 22.8	30
LA2500－6×5-9	128 160 208	13 12 10	55 58 59	3.0	8.2 9.02 9.6	15
LA2500－5×4-14	96 120 156	43 40 34	51 56 57	4.6	22 23.3 25.3	37
LA2500－5×4-13	72 90 117	42 40 37	53 56 60	4.5	15.5 175 19.6	30
LA2500－5×4-12	72 90 117	32 30 27	56 56 55	4.5	11.2 13.1 15.6	22
LA2500－5×4-11	72 90 117	26 24 21	55 56 53	4.5	9.3 10.5 12.6	18.5
LA2500－5×4-10	68 85 110.5	24 20 15	56 56 40	4.2	7.9 8.4 11.2	15
LA2500－5×4-9	64 80 104	23 19.5 16	56 54 47	4.5	7.2 7.9 9.6	15
LA2500－4×3-13	40 50 65	42 40 36	46 48 53	4.5	9.9 11.3 12.0	18.5
LA2500－4×3-12	36 45 58.5	32 30 27	46 47 51	4	6.8 7.8 8.4	15
LA2500－4×3-11	40 45 57	26 24 21	46 46 49	4	6.1 6.4 6.7	11
LA2500－3×2-13	20 25 32.5	37 35 31	39 40 39	3	5.2 5.9 7.0	11
LA2500－3×2-12	18.4 23 30	34 29 23	39 39 42	3	4.4 5.1 5.6	7.5
LA2500－3×2-11	16 20 26	25 23 20	38 39 38	3	2.9 3.2 3.7	5.5
LA2500－2×1 1/2-8	9 12.5 15	30 23 20	38 39 38	3	1.9 2.1 2.2	4.0
